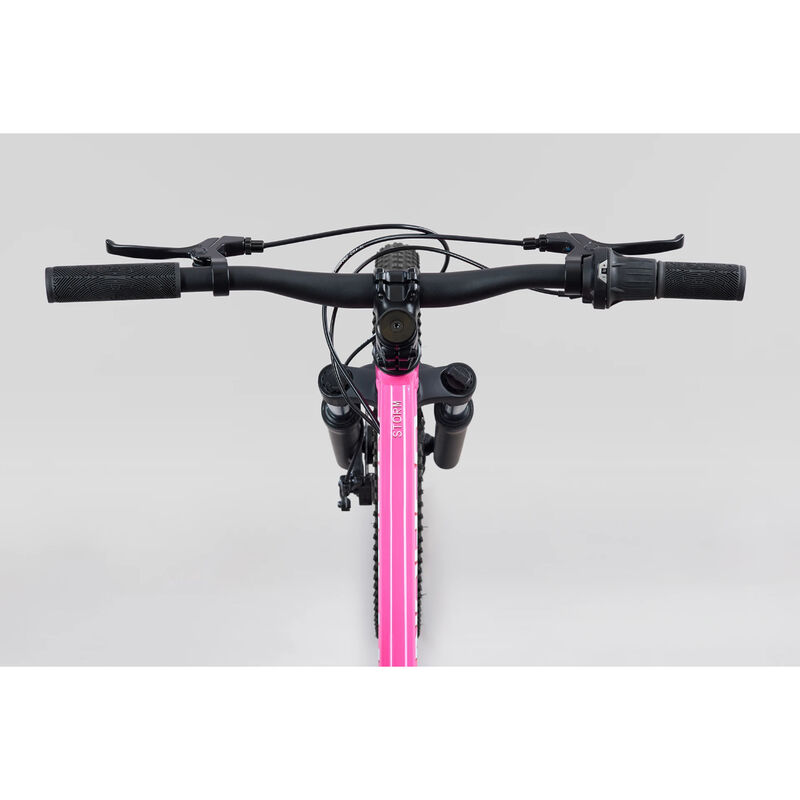

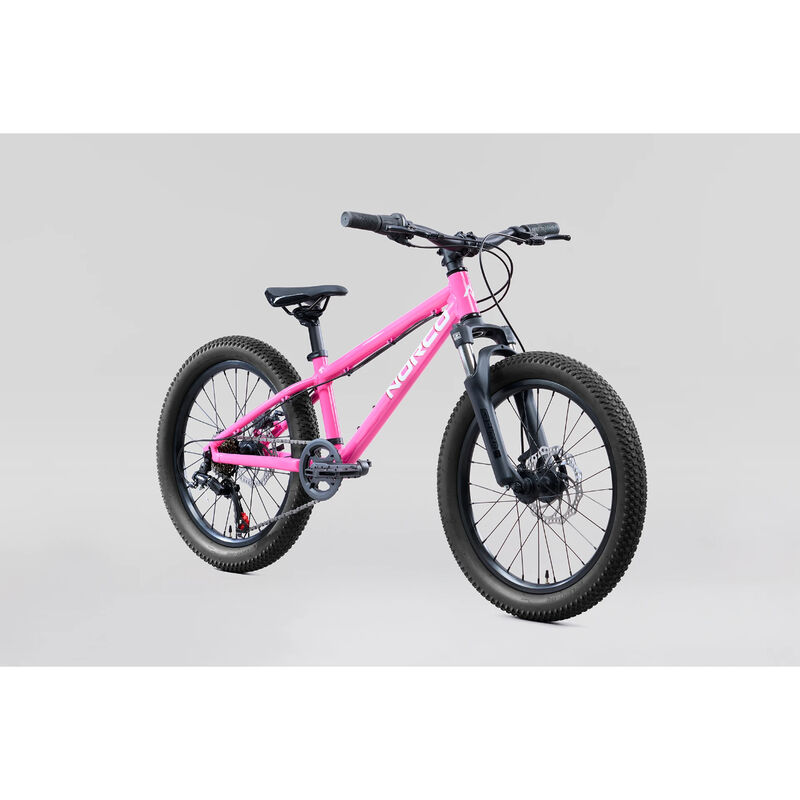

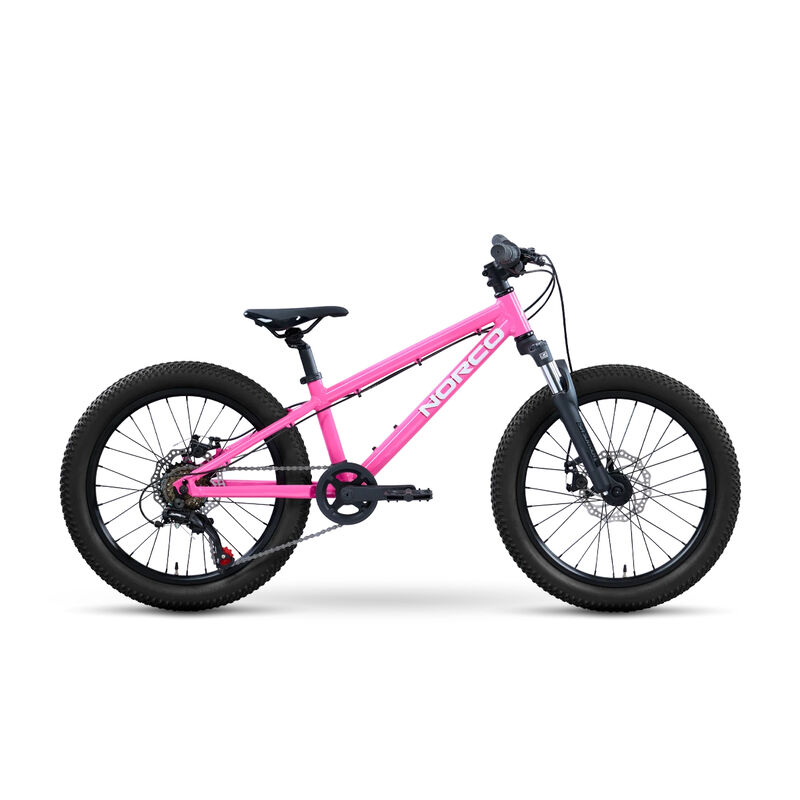

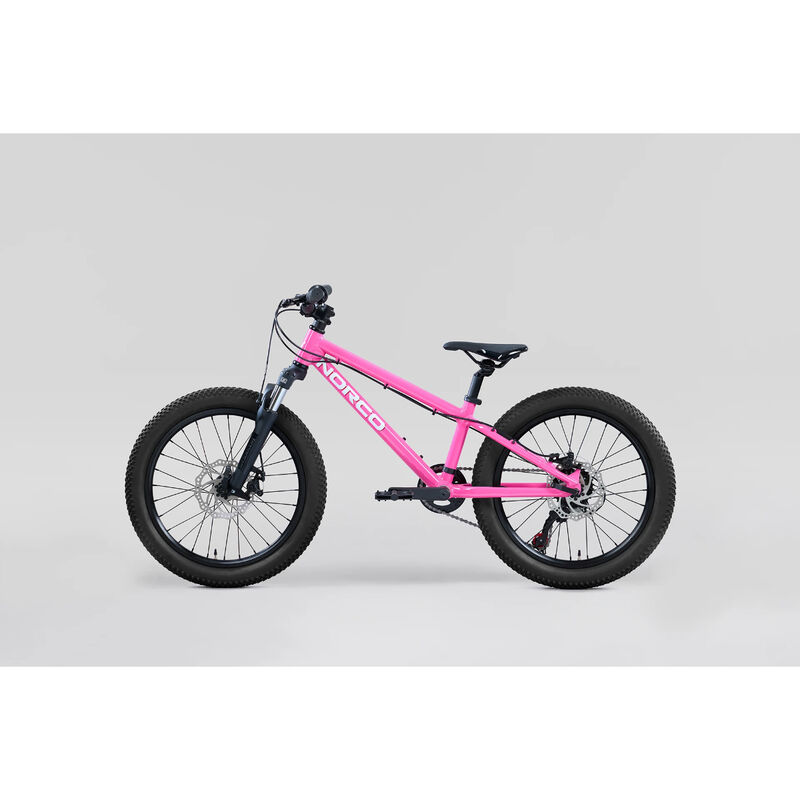

Norco Storm 20 MTB - 20 Pink Youth
Norco Storm 20 MTB - 20 Pink Youth
Low Inventory. Act Quickly!
Style ID: 8204904
Storm 20’s lightweight, durable aluminum frame and size-specific fork travel of 63mm combine with a simple, lightweight drivetrain, quality mechanical disc brakes and optimized fit for riders from 4’2” to 4’8”, building and a love for dirt that’ll last a lifetime.
- Putting a stop to sketchy brakes.
- Just enough fork travel to ease skill building and save weight.
- Models to meet the needs of every young rider.
Frame - Aluminum, 9x135mm QR, 20"
Fork - SR Suntour XCT Coil w/Soft Spring and Preload, 63mm, 9X100 QR
Rear Shifter - Shimano SL-RV200-6R, 6sp, gripshift
Rear Derailleur - Shimano TZ-500, 6sp, Direct mount
Crankset - Alloy 3pc, 140mm, 28T Narrow Wide
Bottom Bracket - Sealed bearing, ST 68mm
Cassette - Shimano MF-TZ500-6, 14-28T, 6sp, Freewheel
Chain - KMC Z6
Front Brake - Tektro Aries, Resin pads, Mechanical Disc
Front Brake Rotor - 6-Bolt, 160mm
Rear Brake - Tektro Aries 160mm Mechanical Disc
Rear Brake Rotor - 6-Bolt, 160mm
Brake Levers - Tektro Aries alloy Jr. Levers w/reach adjust
Handlebar - Alloy Jr. Riser, 540mm, 30mm Rise
Stem - Alloy 35mm Length, 31.8mm Clamp
Seatpost - Norco Alloy 27.2mm, 250mm length
Headset - External Cup Ball Bearing, 1-1/8" EC 34
Headset Spacer - 1x10mm , 2x5mm
Saddle - Norco Youth, Steel Rail
Grips - Norco Youth, 115mm Length
Pedals - Jr. MTB Flat, 9/16"
Seatpost Clamp - Norco Alloy Bolted, 31.8mm ID
Front Hub - Formula DC-1420 , 9x100mm QR, 28h, 6-bolt
Rear Hub - Formula DC-31R-7S, 9x100mm QR, Freewheel, 28h, 6-bolt
Rims - Aluminum DW, 28h, 20" MTB
Front Tire - CY Trail, 20x2.25", Wire
Rear Tire - CY Trail, 20x2.25", Wire
Spokes/Nipples - Stainless Steel w/Brass Nipples - Black
Weight - 10.63 kg (23.4 lbs)
| Wheel Size | 20" | |
| Travel (mm front) | 63 | |
| Reach | 330 | |
| Stack | 418 | |
| HTA | Head Tube Angle | 65 |
| OS | Fork Offset | 40 |
| ST | Seat Tube Length | 255 |
| STA | Effective Seat Tube Angle | 73 |
| RC | Rear Centre Length | 338 |
| BB | Bottom Bracket Drop | 7 |
| BBH | Bottom Bracket Height | 253 |
| HTT | Horizontal Top Tube | 458 |
| WB | Wheelbase | 904 |
| SOH | Standover | 467 |
| HT | Head Tube Length | 90 |
| Trail | 77 | |
| Recommended Seatpost Drop | 0 | |
| Maximum Post Insertion | 233 | |
| Stem Length | 45 | |
| Crank Length | 140 | |
| Tire Size | 2.2" – 2.4" | |
| Water Bottle Compatible | 1 x 620mL |
