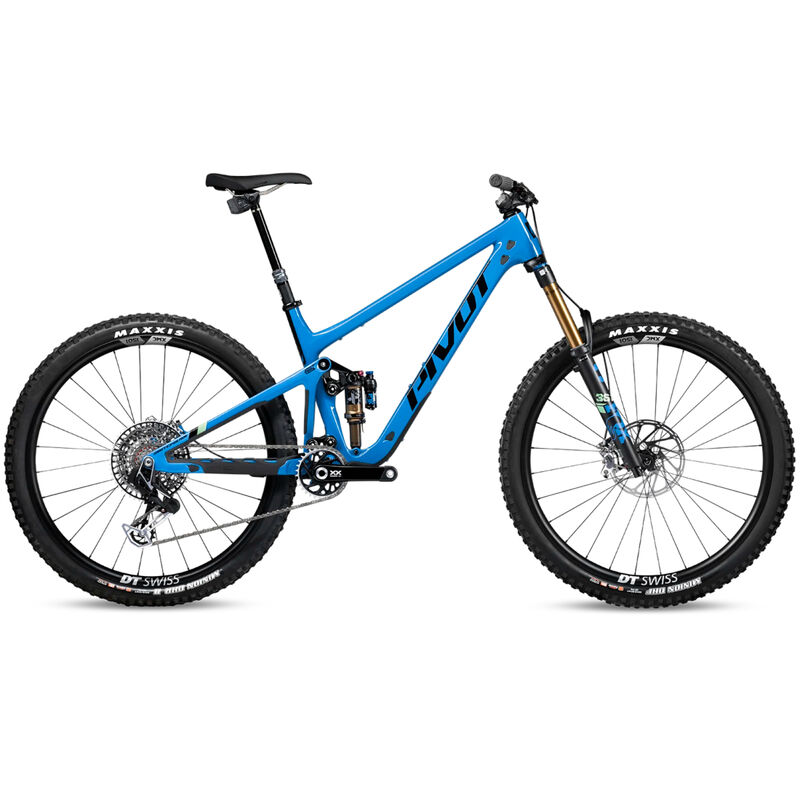

Pivot Switchblade Ride Eagle MTB - L 70/90 Blue Neptune
Pivot Switchblade Ride Eagle MTB - L 70/90 Blue Neptune
Low Inventory. Act Quickly!
Style ID: 8204627
The Switchblade is built for riders who demand total versatility, combining playful agility with big-terrain composure. With a refined, responsive chassis and geometry tuned for speed and control, it climbs efficiently, carves aggressively and swallows every hit along the way.
- Ultra-Light Hollow Core carbon frame
- Size Specific Chainstays
- Equipped with a 44mm offset 160mm-travel FOX 36
- Flip Chip for on-trail geometry customization
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling
- Hassle free full internal routing with Pivot cable port system
- Compatible with both 29, 27.5+” and 27.5” rear/29” front (mullet) wheel sizes without compromise thanks to the flip chip’s adjustable geometry feature
- 142mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock
- Large water bottle clearance on all sizes
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Universal derailleur hanger (UDH)
MSRP - Starting at $6,499.00
Frame - Switchblade
Fork - Fox Performance 36 29", 44mm offset, GRIP - 160mm
Rear Shock - Fox Performance Float X
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram Eagle 90 Mechanical Transmission 12-Speed
Cassette - Sram XS-1270 Eagle Transmission 10-52t
Shifter - Sram Eagle 90 Mechanical Transmission 12-Speed
Brakes - Sram DB8 Stealth 4-piston
Crankset - Sram Eagle 70 DUB 32t
Handlebar - Phoenix Race Low Rise Aluminum - 780mm (XS-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 35mm(XS), 45mm(SM-XL)
Seatpost - JD/PIVOT YSP23GLS 150mm (XS-SM) 170mm (MD) 200mm (LG-XL)
Saddle - Phoenix WTB Race High Tail Trail (XS, SM), Phoenix WTB Race Volt Medium Width (MD-XL)
Wheels - DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires - Maxxis Minion DHF 29" x 2.5" /Maxxis Minion DHRII 29" x 2.4"
Rotors - Sram Centerline 6-bolt - 200mm Sram Centerline 6-bolt - 180mm
Chain - Sram Eagle 70 Flattop 12-Speed
| XS | SM | MD | LG | XL | ||
| A | Seat Tube Length (C-T) | 34.3 cm | 36.8 cm | 39.4 cm | 43.2 cm | 47.0 cm |
| B | Top Tube Length (Eff.) | 56.9 cm | 60.6 cm | 63.4 cm | 65.0 cm | 66.3 cm |
| C | Head Tube Length | 8.5 cm | 10.0 cm | 11.2 cm | 11.7 cm | 13.0 cm |
| D | Head Tube Angle | 65.2° | 65.2° | 65.2° | 65.2° | 65.2° |
| E | Seat Tube Angle (Eff.) | 76.0° | 76.0° | 76.0° | 76.0° | 76.5° |
| F | Chain Stay Length | 43.1 cm | 43.1 cm | 43.1 cm | 43.2 cm | 43.6 cm |
| G | Bottom Bracket Height | 34.4 cm | 34.4 cm | 34.4 cm | 34.4 cm | 34.4 cm |
| H | Bottom Bracket Drop | 2.9 cm | 2.9 cm | 2.9 cm | 2.9 cm | 2.9 cm |
| I | Standover Height | 65.1 cm | 66.7 cm | 69.0 cm | 70.1 cm | 70.2 cm |
| J | Wheelbase | 115.7 cm | 119.3 cm | 122.3 cm | 124.2 cm | 127.1 cm |
| Reach | 41.0 cm | 44.0 cm | 46.5 cm | 48.0 cm | 50.0 cm | |
| Stack | 61.4 cm | 62.7 cm | 63.8 cm | 64.3 cm | 65.5 cm |
